Manufacturers of square tube elbows in Steel and Aluminum. U.S. Patent 8074420

 Eliminate sharp mitred corners with these time saving  90   degree square tube elbows.


We're having our twentieth

B.C. business grows everything.

Core Features

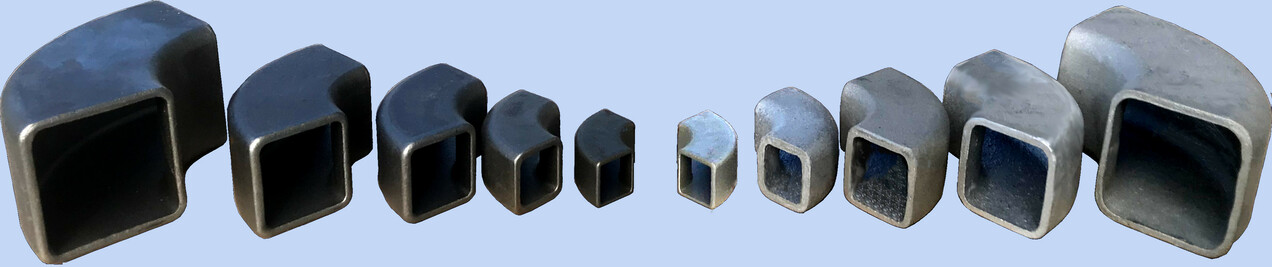

Butt weld, 90o steel and aluminum elbows that have a very small radius and are available in sizes from.......


  3/4" x 3/4" x 0.063"

to

     4" x 4" x 0.375"

   and larger if needs be.



These  90 Degree tube elbows are not bent, so there's no stretching

of the outer curve or wrinkling and deforming of the inner curve.

  They improve structural strength,  have full wall thickness throughout  and  are a

fully weldable  tube elbow.


Pre-beveled to 30 degrees, simply place and weld.


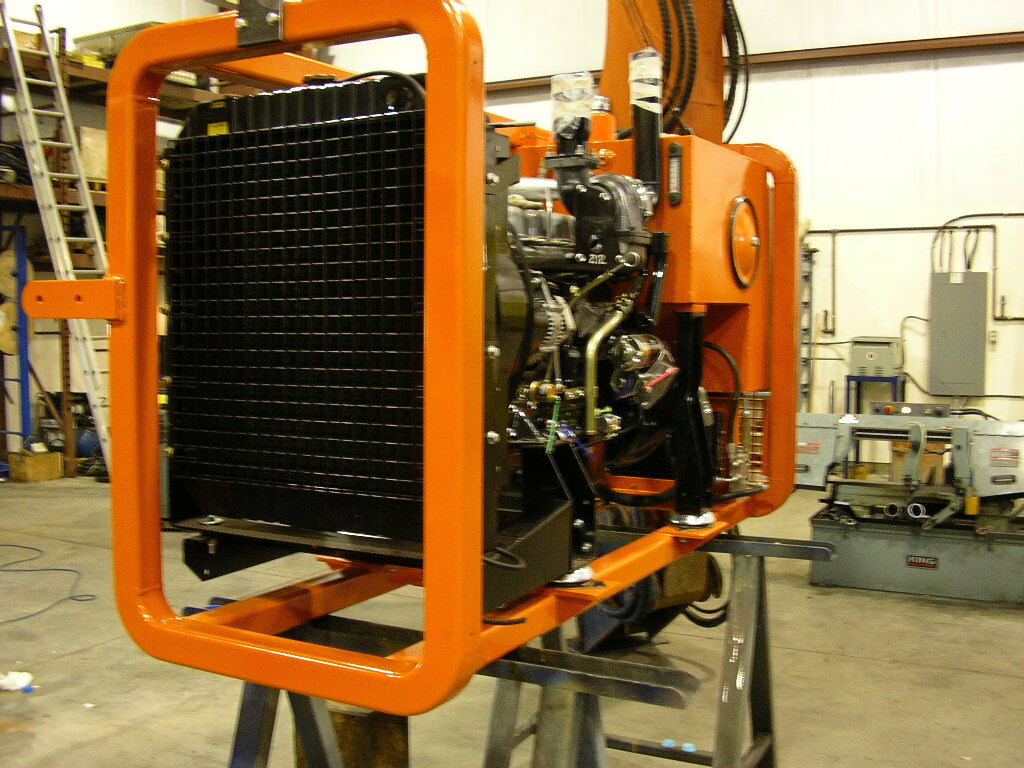

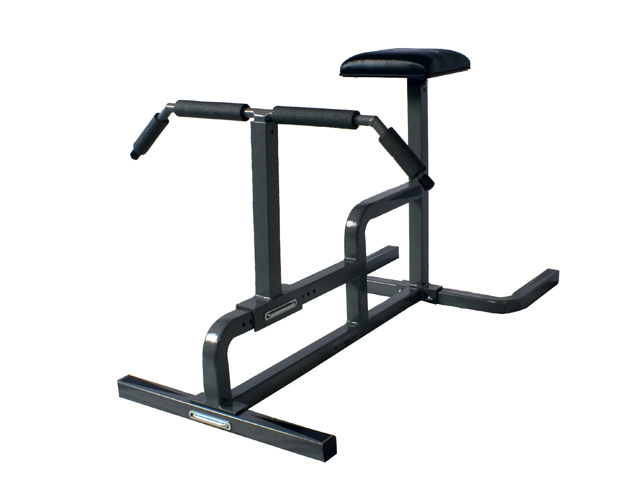

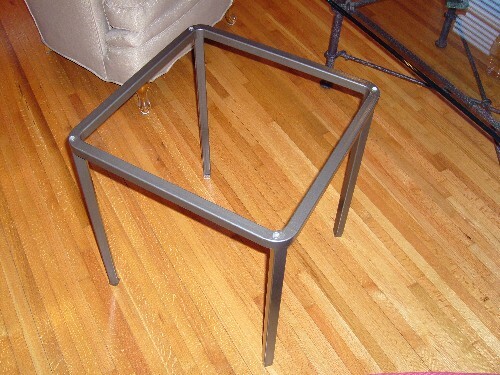

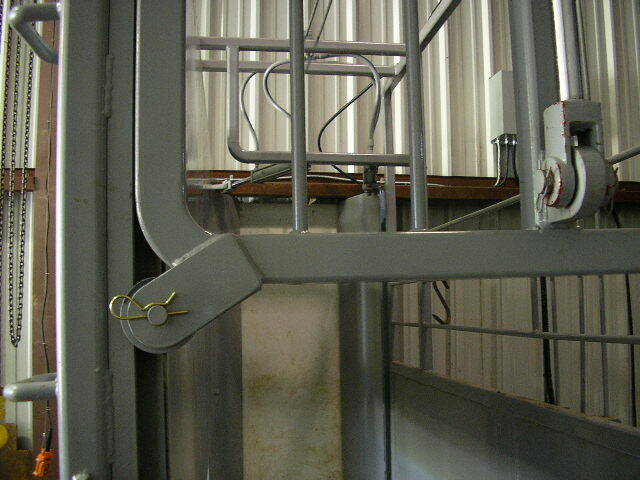

There's no limit to the number of applications!


Especially useful in industrial construction and repetitious

manufacturing processes.


Technical Info

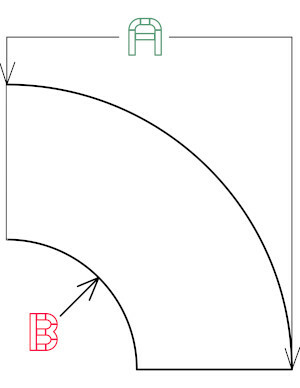

Elbow Dimensions



A        B


3/4" x 3/4"x .063"

1 3/8"           3/8"

1 x 1 x .063"

1 3/4"           3/4"
1 x 1 x .125"

1 3/4"           3/4"
1 1/4 x 1 1/4 x .125"

2 1/4"           1"

1 1/2 x 1 1/2 x .125"

2 5/8"           1 1/8"
1 1/2 x 1 1/2 x .188"

2 5/8"           1 1/8"
2 x 2 x .125"

3 1/2"           1 1/2"
2 x 2 x .250"

3 1/2"           1 1/2"
3 x 3 x .250"

5 1/4"           2 1/4"
4 x 4 x .375"

7"                   3"

Download


Engineering Drawings:

DXF Format.


2D           3D

These links will upload a small zip file to your computer.




Ask your dealer for Quickfab Elbows

OR

OR


If you have requirements for different sizes or materials, please,

let us now.
